Oval Racing
The Track
The Track
The Track
The Oval track shares the same carpet as the onroad track, a simple layout change and you're turning lefter faster.
150' Run-line.
Classes
The Track
The Track
Oval cars are usually, but not always, pan cars (or some variation) with a solid rear axle. Sometimes touring or buggy chassis can be converted (with a body change) to create a visually striking oval class.
The largest differentiations from one pan car class to the next is in body, tire, and motor specifications.
Oval "weekly" classes
Oval is a bit different
6.1 – Oval classes per TOUR rules: https://snowbirdnationals.com/images/2020TourRules.pdf
13.5 RTT (Rubber Tire Truck)
6.4.1. Chassis – 1/10 Pan

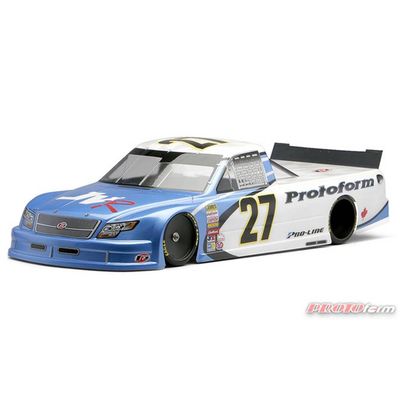

6.4.1.1. NASCAR Truck body
6.4.1.1.1. Protoform 1227-21, McAllister 218/ 300/301/302 , or RJ speed 1050
6.4.1.1.2. Painted/Ready to Race body weight minimum of 105g. (per TOUR)
6.4.1.2. Minimum Weight 39oz
6.4.2. Motor – ROAR 13.5
6.4.3. ESC – non-timing/ "blinky"
6.4.4. Battery – ROAR 1s LiPo
6.4.4.1. Max Voltage 4.22 V
6.4.5. Tires – CRC Rubber GT tires
6.4.5.1. Only CRC P/N 2310 wheels permitted
6.4.5.2. No alteration or double stuffing of inserts
6.4.5.3. Front: CRC P/N 2311 or Pre-mount P/N 2314
6.4.5.3.1. Must be mounted with larger sidewall outboard, lettering visible
6.4.5.3.2. No alteration of tires permitted, no inside tape, glue, etc.
6.4.5.4. Rear: CRC P/N 2312 or Pre-mount P/N 2316
6.4.5.4.1. Must be mounted with larger sidewall outboard, lettering visible
6.4.5.4.2. No alteration of tires permitted, no inside tape, glue, etc.
6.4.5.5. Tire tread surface must be "smooth" with no evidence of "ruffling" or
other mechanical manipulation in an effort to increase grip or forward drive.
17.5 Car
6.2.1. Chassis – 1/10 Pan
6.2.1.1. Body – Gen 3/ Nationwide / spoiler
6.2.1.1.1. Protoform Gen 3 (part # 123221, 1237-25, 1233-25) or McAllister part # 277 / 298 / 299
6.2.1.2. Minimum Weight 36oz
6.2.2. Motor – Tekin TT2762 17.5 Gen4
6.2.2.1. Must use included TT2776 – 12.5mm SPEC-R Rotor – BLUE
6.2.3. ESC – non-timing/ "blinky"
6.2.4. Battery – ROAR 1s LiPo
6.2.4.1. Max Voltage 4.22 V
6.2.5. Tires – World GT spec tires
MudBoss (17.5)
1 Salvas MudBoss BODIES only
1.1 - Any minor modification to the body must be approved before being allowed
2 CHASSIS
2.1 - TRAXXAS 2wd (SLASH or RAPTOR) chassis only (LCG chassis permitted)
2.2 - Original MFG suspension parts only, no other parts allowed (such as from RPM)
2.3 - Original MFG chassis parts only, no aftermarket hop-ups, no optional aluminium parts
2.4 - Front bumper, right side bumper and front body post brace must be removed
2.4.1 - Left side and rear bumpers can also be removed (if desired) **rear RPM bumper is
allowed**
2.5 - TRAXXAS front optional bumper (TRA2735) can be used (angled down)
2.6 - Major alterations to the chassis or modification to drivetrain/suspension components is not
allowed
2.7 - Electronics (rx/esc/amb) must be installed within chassis surface (no outside installation)
2.8 - Battery brace can be trimmed to allow different LiPo battery wire configuration
3 ELECTRONICS
3.1 - Original TRAXXAS 2075 servo
3.2 - TRAXXAS 2075x (servo) AND TRAXXAS 2072x (gears) are allowed as ‘alternative’ parts/servo
3.2.1 - The “SAVOX SC-0252MG Digital Servo” is allowed, this is an ‘alternative’ servo
3.2.2 - SAVOX gear set (SAVSGSC0251MG) can be used to ‘upgrade’ the TRAXXAS 2075 to
metal gears
3.3 - it is allowed to 'pin' the servo saver(white) or bell crank(black)...be advised the servo gears
might get broken under a heavy crash!!!
3.3.1 - original TRAXXAS plastic servo saver/bell crank only (white or black system) it is
allowed to mix the components (ie.. black servo horn with white bell crank)
3.3.2 - It is allowed to use a solid (one piece) servo horn (any brand)
3.4 - 2-cell 7.4v LiPo battery with a maximum of 5200mah and 50c, with external plug only (no
“bullet type” connector)
4 ADJUSTMENTS
4.1 - TRAXXAS 76/83/86/90 spur with all transmission parts in place (slipper)
4.2 - Any pinion size
4.3 - No modifications can be made to the transmission’s case (ie.. to allow a bigger gear ratio)
4.4 - The gear cover must be off at all times to allow for visual inspection (CARPET)
4.5 - The only adjustments allowed to the car are those allowed by the original MFG components
of the car
4.6 - You are allowed to use any original wheel spacer combination (Black, Grey or any
combination of both types)
4.7 - Transmission functionality rule (motor can not spin while turning slowly one rear wheel a full
turn)
4.8 - Traxxas SLASH *STEEL* transmission gears only (internal plastic transmission gears not
allowed)
4.9 - Adding weight (in any way) is not allowed, wheel balancing is allowed (sole purpose of
balancing, not to add weight)
5 SUSPENSION
5.1 - TRAXXAS 2WD plastic shocks only (grey or black version) (fronts in front, rears in rear)
5.2 - Original Rear(TRAXXAS 5858) and Front springs (TRAXXAS 5857) (no LCG kit springs or
aftermarket springs)
5.3 - Front springs may be cut in order to shorten them (no more than 5 round removed on ONE
end)
5.4 - The shock’s travel may be shortened with internal shims (ie..fuel tube or solid shims...)
5.5 - Original shafts in original cylinder (length and type in proper cylinder)
5.6 - Original pistons from kit only (original 1,2 or 3 hole), no modifications can be made to them
5.7 - No front bump stop suspension, a single original blue bump stop can be used per rear shock
(not mandatory)
5.8 - No shimming allowed (to reduce slop in suspension parts)
5.9 - All suspension parts (such as A-Arms) must remain in original positions it was designed for
(no swapping left to right)
5.9.1 - rear camber links must remain in original height position (upper hole on shock tower not
allowed)
6 Coastal CARPET BOSS OVAL (17.5) SPECIFIC RULES
6.1 - TRAXXAS Low CG chassis is allowed
6.2 - ROAR Approved 17.5 motor and ROAR "Blinky" Approved or zero timing ESC
6.2.1 - A Single 30mm Fan can be used for motor or ESC cooling
6.3 - JACO tires (JAC2055LP) only **can be trued**(must keep its FULL WIDTH, it is allowed to
round the edges)
6.4 - Plastic Wheel cap are allowed with a max dia of 3.125” and must be secured with a min of 2
screws/wheel
6.5 - You may use a bead of “CA” type glue or ‘’tape’’ to the RIGHT FRONT tire side wall to reduce
the car’s aggressiveness
6.6 - Coastal SPEC tire additive only (SXT)
6.7 - all other rules specified earlier in sections 1-2-3-4-5 stays the same
21.5 Truck
6.3.1. Chassis – 1/10 Pan
6.3.1.1. NASCAR Truck Body
6.3.1.1.1. Protoform 1227-21, McAllister 218/ 300/301/302, or RJ speed 1050
6.3.1.2. Minimum Weight 36oz
6.3.2. Motor – TOUR Spec Motiv 21.5
6.3.3. ESC – non-timing / "blinky"
6.3.4. Battery – ROAR 1s LiPo
6.3.4.1. Max Voltage 4.22 V
6.3.5. Tires – World GT spec tires
Spec 10
Chassis and parts
- RJ Speed Spec 10 or TK Racing Godfather chassis only. No spec mod.
- RJ Speed Spec 10 or TK Racing unmodified parts only, this also includes springs, steering blocks and axles. Turnbuckles are allowed for steering links. Bearings are allowed.
- No cutting or shaving of ANY parts to reduce weight. No drilling holes in any parts or body to reduce weight.
- 92 tooth spur only and 46 or 47 tooth pinion only. (64 Pitch gears only.)
- 4mm ride height minimum
- No ceramic bearings or ceramic diff balls
- No performance improving hardware.
Bodies
- RJ Speed bomber body or McAllister 181 or 182 bomber body only.
- No alterations or scraping to the body.
- Body must be trimmed on the manufacturer’s molded cut line. Wheel well area can be trimmed forward or back to fit the location of the tire.
- The only holes allowed in the body are the 4 body mount holes.
Tires
- CRC rubber carpet tires only. #2314.
- The only allowed modification of the tires is gluing the sidewall. Any and all other modifications to the tires is illegal.
Electronics
- Hobby Wing Justock with booster or any 1S ESC in Blinky.
- TOUR Fantom 17.5 Motor. All motors are to be checked and set by your local authorized Spec 10 ambassador or the motor can be shipped to Southern Indiana RC Speedway for proper tuning.
- Any ROAR approved 1S LIPO approved battery.
- Servo must be a standard low profile servo. (The goal here is low cost, if in doubt, ASK!)
*SIRCS is the Spec 10 headquarters and any class rule changes must be approved by SIRCS Spec 10 Mafia.
*Final interpretation of rules is left to SIRCS Spec10 Mafia *This class is made so all cars are kept as even as possible and every attempt will be made to keep it that way, Including rule changes if necessary!
*This is a class to have fun with! CONTACT IS GOING TO HAPPEN!
Coastal RC Specific rules:
3d printed parts can not alter the chassis stiffness or handling any more than "normal" parts, and must allow for battery removal without requiring tools.
1RC Wing Sprint 360
7.2.1 Chassis & Body
7.2.1.1 - Cars must be complete cars with all bodywork, headers, front and top wings (for wing
classes) and driver figure.
7.2.1.2 - Cars must have a number on each side of the tail tank, each side of the wing and on the
front of the hood (non-wing class).
7.2.1.3 - Only upgrade parts listed on the 1RC website are approved unless otherwise noted.
7.2.1.4 - Optional body parts are allowed but must be parts available on the 1RC website.
7.2.1.5 - No changes can be made to front or top wing that are not available on the 1RC website .
7.2.1.6 - No additional ballast can be added to the chassis or electronics (including the battery,
regardless of battery type used). A maximum RTR weight (including transponder) of 265g
will be used to allow for a variety of personal electronics choices.
7.2.1.7 - Stock RTR weight (without transponder) is observed at 252g, cars with transponder
at or under this weight may be scrutineered for violating the spirit of these rules.
7.2.2 Motor
7.2.2.1 - Stock 8700kv w/10T Pinion
7.2.2.2 - Stock Sprint Gears
7.2.3 Radio, Servo & ESC
7.2.3.1 - Any Radio System may be used
7.2.3.2 - Stock or 1RC7017 Servo only
7.2.3.3 - Stock ESC Only (1RC7014 )
7.2.3.4 - All electronics must be installed under body work (hood, driver, tail section), hidden from
common view while the car is on track. The intent of this rule is to prevent "super mod" style
electronics installations in visible and extreme locations.
7.2.4 Battery
7.2.4.1 - 5 cell battery as included with car (1RC7007). OR SpeedFactory 300mAh 2s LiPo with
SpeedFactory 6v voltage reducer (available in Coastal RC Hobby Shop)
7.2.4.2 - Battery must be installed in the factory battery box, in the stock location, on the vehicle,
using the stock battery door and latch system.
7.2.5 Tires
7.2.5.1 - 1RC Sprint tires only, any compound (may be restricted later, if necessary), any color
wheels.
7.2.5.2 - CA Glue may be used on tire sidewalls for tuning purposes, however, no tread area may
be glued.
NOTE: This class will run on a reduced "footprint" track better suited to the vehicle size, not the full 1/10 oval.
The following is the suggested race format from the 1RC rules for reference, and is NOT NECESSARILY INDICATIVE OF HOW RACING AT COASTAL RC WILL BE CONDUCTED FOR THIS CLASS: Suggested Race Format
As more racers are starting to build tracks, we have had a lot of requests to come up with a general race format for tracks to use. Below is a race format we have used in the past that works well. This format provides you a lot of wheel time and allows for you to have a bad heat race or two but not ruin your whole day of racing.
Qualifying
- Each car will get four (4) qualifying laps. Your fastest lap is your qualifying lap and is how you are seeded into the heat races.
Heat Races
- Based on your qualifying time, you will be grouped into heat races consisting of 5-6 cars.
- Heat races are 10 laps in length and you will run 4 complete heat races.
- In the first round of heat races the lineup is inverted, fastest car in the back, slowest in the front. In the 2nd heat race, the line up is inverted from the order of finish from your first heat race and so for the remaining heat races.
Main Events
- Main events are sorted into 5-6 car races and your main event position is determined by your fastest 10 lap heat race finish.
- The lowest main event will run first.
- Starting position B-Mains and lower are heads up, the fastest car in that main event starts in the front. The A-Main will be a draw to see how many rows are inverted.
- Laps for main events are as follows:
- A-Main - 50 Laps
- B-Main - 40 Laps
- C-Main - 30 Laps
- D-Main and Lower - 20 Laps
- Top finisher from each main event will bump to the back of the next higher main event.
Re-Run
- Once the entire race program above is completed, you will run this entire program again as many times as you have time to complete.
As mentioned, this is only a suggested format but it works great and provides you a lot of racing. This format allows you to have a bad heat race or two and not ruin your whole night of racing. The most important thing with any race program is to have fun and that is what these cars are all about.
Oval Option Class Rules
Bring your Buddies!
4 entries or more will run as a class, for those listed.
Have something Different?
For classes not listed, a basic rule set shall be provided to Coastal RC for review
Legends
Legends – Rules per: http://rjspeed.com/rjspeed/2010rules.pdf
7.1.1. Chassis
7.1.1.1. RJSpeed legends kit, the only permitted modifications/hop ups are as listed in the linked rule set
7.1.1.2. Body must be RJSpeed molded legends bodies
7.1.1.3. No bearings permitted (except servo)
7.1.1.4. Minimum weight 34oz
7.1.2. Motor
7.1.2.1. Brushed
7.1.2.1.1. Duratrax DTXC3301
7.1.2.1.2. Dynamite DYN1171
7.1.2.2. Brushless
7.1.2.2.1. 21.5 – Fixed timing model preferred
7.1.3. ESC – Brushed or non-timing/ “blinky”
7.1.4. Battery – 4 cell NiMh or ROAR 1s LiPo
7.1.4.1. LiPo- Maximum battery and motor supply voltage 4.22 V
7.1.4.2. No receiver packs permitted, voltage boosters may be used for radio system
7.1.5. Tires – Spec “striped” tires, no reverse mounting of front wheels
Spec MudBoss (Brushed 12T) - THIS CLASS IS NOT TYPICALLY RUN
1 Salvas MudBoss BODIES only
1.1 - Any minor modification to the body must be approved before being allowed
2 CHASSIS
2.1 - TRAXXAS 2wd (SLASH or RAPTOR) chassis only (LCG chassis permitted)
2.2 - Original MFG suspension parts only, no other parts allowed (such as from RPM)
2.3 - Original MFG chassis parts only, no aftermarket hop-ups, no optional aluminium parts
2.4 - Front bumper, right side bumper and front body post brace must be removed
2.4.1 - Left side and rear bumpers can also be removed (if desired) **rear RPM bumper is
allowed**
2.5 - TRAXXAS front optional bumper (TRA2735) can be used (angled down)
2.6 - Major alterations to the chassis or modification to drivetrain/suspension components is not
allowed
2.7 - Electronics (rx/esc/amb) must be installed within chassis surface (no outside installation)
2.8 - Battery brace can be trimmed to allow different LiPo battery wire configuration
3 ELECTRONICS
3.1 - Original TRAXXAS 2075 servo
3.2 - TRAXXAS 2075x (servo) AND TRAXXAS 2072x (gears) are allowed as ‘alternative’ parts/servo
3.2.1 - The “SAVOX SC-0252MG Digital Servo” is allowed, this is an ‘alternative’ servo
3.2.2 - SAVOX gear set (SAVSGSC0251MG) can be used to ‘upgrade’ the TRAXXAS 2075 to
metal gears
3.3 - it is allowed to 'pin' the servo saver(white) or bell crank(black)...be advised the servo gears
might get broken under a heavy crash!!!
3.3.1 - original TRAXXAS plastic servo saver/bell crank only (white or black system) it is
allowed to mix the components (ie.. black servo horn with white bell crank)
3.3.2 - It is allowed to use a solid (one piece) servo horn (any brand)
3.4 - 2-cell 7.4v LiPo battery with a maximum of 5200mah and 50c, with external plug only (no
“bullet type” connector)
4 ADJUSTMENTS
4.1 - TRAXXAS 76/83/86/90 spur with all transmission parts in place (slipper)
4.2 - Any pinion size
4.3 - No modifications can be made to the transmission’s case (ie.. to allow a bigger gear ratio)
4.4 - The gear cover must be off at all times to allow for visual inspection (CARPET)
4.5 - The only adjustments allowed to the car are those allowed by the original MFG components
of the car
4.6 - You are allowed to use any original wheel spacer combination (Black, Grey or any
combination of both types)
4.7 - Transmission functionality rule (motor can not spin while turning slowly one rear wheel a full
turn)
4.8 - Traxxas SLASH *STEEL* transmission gears only (internal plastic transmission gears not
allowed)
4.9 - Adding weight (in any way) is not allowed, wheel balancing is allowed (sole purpose of
balancing, not to add weight)
5 SUSPENSION
5.1 - TRAXXAS 2WD plastic shocks only (grey or black version) (fronts in front, rears in rear)
5.2 - Original Rear(TRAXXAS 5858) and Front springs (TRAXXAS 5857) (no LCG kit springs or
aftermarket springs)
5.3 - Front springs may be cut in order to shorten them (no more than 5 round removed on ONE
end)
5.4 - The shock’s travel may be shortened with internal shims (ie..fuel tube or solid shims...)
5.5 - Original shafts in original cylinder (length and type in proper cylinder)
5.6 - Original pistons from kit only (original 1,2 or 3 hole), no modifications can be made to them
5.7 - No front bump stop suspension, a single original blue bump stop can be used per rear shock
(not mandatory)
5.8 - No shimming allowed (to reduce slop in suspension parts)
5.9 - All suspension parts (such as A-Arms) must remain in original positions it was designed for
(no swapping left to right)
5.9.1 - rear camber links must remain in original height position (upper hole on shock tower not
allowed)
6 Coastal CARPET BOSS OVAL (SPEC) SPECIFIC RULES
6.1 - TRAXXAS Low CG chassis is allowed
6.2 - TRAXXAS 12t brushed motor AND XL5 esc ONLY (OEM motor connector only)
6.3 - JACO tires (JAC2055LP) only **can be trued**(must keep its FULL WIDTH, it is allowed to
round the edges)
6.4 - Plastic Wheel cap are allowed with a max dia of 3.125” and must be secured with a min of 2
screws/wheel
6.5 - You may use a bead of “CA” type glue or ‘’tape’’ to the RIGHT FRONT tire side wall to reduce
the car’s aggressiveness
6.6 - Coastal SPEC tire additive only (SXT)
6.7 - all other rules specified earlier in sections 1-2-3-4-5 stays the same
